Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Product Categories
Chengdu Kedel Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Place of Origin : China

MOQ : 5

Price : $2-6

Material Composition : Tungsten carbide and cobalt

Alloy Specification : YG6, YG6X, YG8, YG9C, YG11C, YG13C

Surface Finish : Glossy

Shape : Plates

Color : Black Alloy

Density Range : 12.00-14.90 g/cm³

Hardness Range : 86.5-93.6 HRA

TRS Range : 2000-3800 MPa

Porosity Grade : A02/B00/C00

Grain Size : 0.4-2.4 μm

Power Source : Electric

Engine Type : Electric

Minimum Order : 5 PIECES

Customization : Available

Usage : Welding dissimilar metals

Contact Now

Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Products Description
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Product Paramenters
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Grade

Composition(% in weight)



Physical Properties



Grain size(μm)





Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity


WC
Ni
Ti
TaC



A/B/C

KD115/YG6X
93.5
6.0
-
0.5
14.90
93.0
2700
A02/B00/C00
0.6-0.8
KD335/YG10X
89.0
10.5
-
0.5
14.40
91.8
3800
A02/B00/C00
0.6-0.8
KG6/YG6
94.0
6.0
-
-
14.90
90.5
2500
A02/B00/C00
1.2-1.6
KG8/YG8
92.0
8.0
-
-
14.75
90.0
3200
A02/B00/C00
1.2-1.6
KG9/YG9
91.0
9.0
-
-
14.60
89.0
3200
A02/B00/C00
1.2-1.6
KG9C/YG9C
91.0
9.0
-
-
14.60
88.0
3200
A02/B00/C00
1.6-2.4
KG10/KG10
90.0
10.0
-
-
14.50
88.5
3200
A02/B00/C00
1.2-1.6
KG11/YG11
89.0
11.0
-
-
14.35
89.0
3200
A02/B00/C00
1.2-1.6
KG11C/YG11C
89.0
11.0
-
-
14.40
87.5
3000
A02/B00/C00
1.6-2.4
KG13/YG13
87.0
13.0
-
-
14.20
88.7
3500
A02/B00/C00
1.2-1.6
KG13C/YG13C
87.0
13.0
-
-
14.20
87.0
3500
A02/B00/C00
1.6-2.4
KG15/YG15
85.0
15.0
-
-
14.10
87.5
3500
A02/B00/C00
1.2-1.6
KG15C/YG15C
85.0
15.0
-
-
14.00
86.5
3500
A02/B00/C00
1.6-2.4
KD118/YG8X
91.5
8.5
-
-
14.50
93.6
3800
A02/B00/C00
0.4-0.6
KD338/YG12X
88.0
12.0
-
-
14.10
420092.8
2200
A02/B00/C00
0.4-0.6
KD25/P25
77.4
8.5
6.5
6.0
12.60
91.8
2200
A02/B00/C00
1.0-1.6
KD35/P35
69.2
10.5
5.2
13.8
12.70
91.1
2500
A02/B00/C00
1.0-1.6
KD10/M10
83.4
7.0
4.5
4.0
13.25
93.0
2000
A02/B00/C00
0.8-1.2
KD20/M20
79.0
8.0
7.4
3.8
12.33
92.1
2200
A02/B00/C00
0.8-1.2
NOTE: Customization available per customer drawing or actual sample

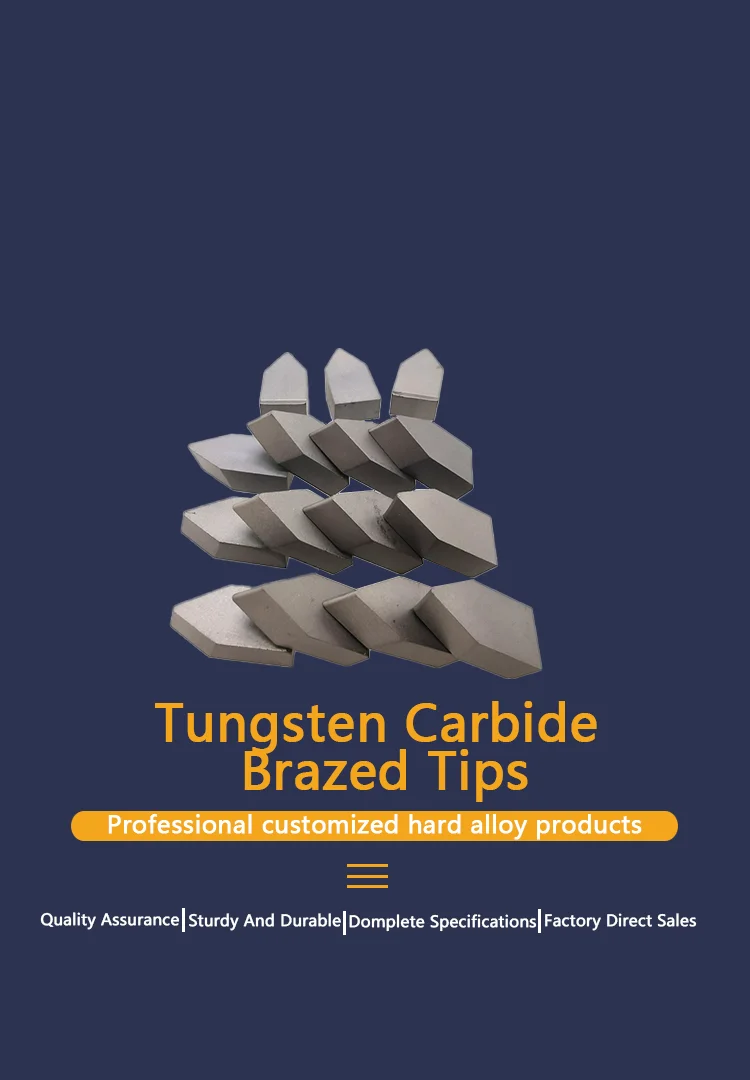

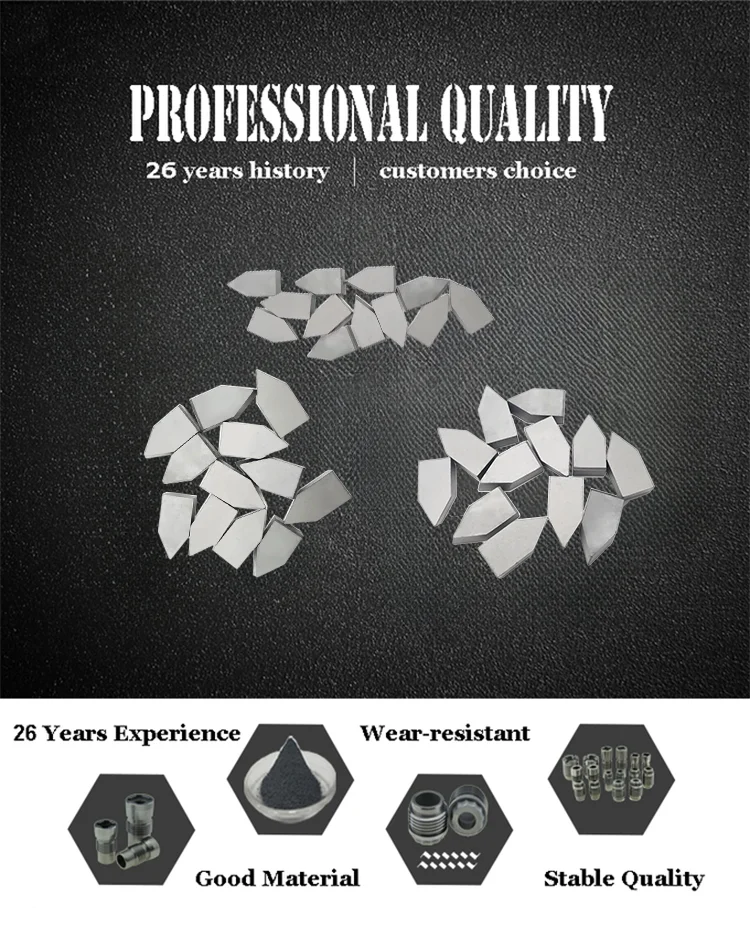

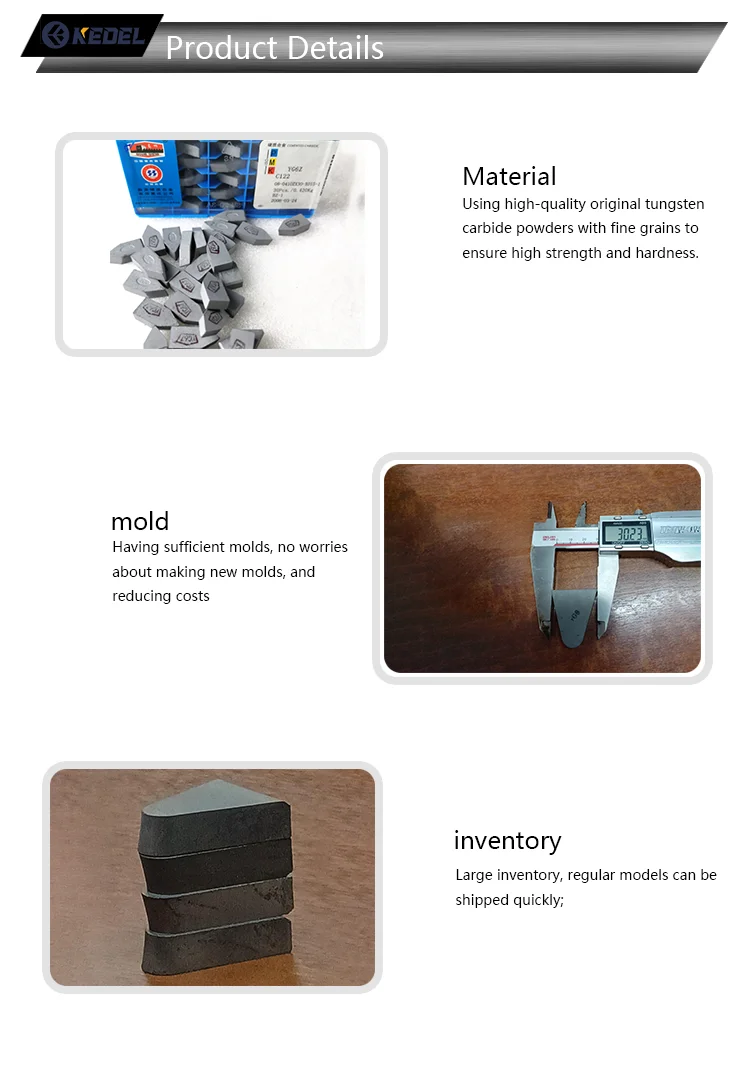

Details Images
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Why Choose Us
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

Company Profile
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Exhibition
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa
Customized High-Density Tungsten Carbide Brazed Tips with Hardness Range 86.5-93.6 HRA and TRS Range 2000-3800 MPa

FAQ

Q: How to obtain an accurate quotation from Kedel Tools?

A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

Q: How does our company ensure the quality of its products?

A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q: How long does a typical production cycle take?

A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q: What is our company’s payment method?

A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
